Adopt the end-to-end 3D inspection solution for quality measurements

Discover our universal software suite

Prepare your program, simulate offline with digital twins, run and control your inspection, analyze and correct in real time.

Universal, global software platform

We work in all areas of your industry to ensure reliable measurement quality throughout your measurement processes.

The End-to-End solution: a complete, integrated 3D measurement chain

1. Prepare your inspection plan

CAD import

3D models are imported from CAD software (Catia, NX, SolidWorks, etc.).

Measurement program creation :

Use software such as Metrolog or Metrolog EVO to generate measurement programs from CAD models.

Using PMI (Product Manufacturing Information)

Tolerances and annotations are extracted directly from CAD to automate the creation of measurement plans.

2. Simulate and validate your program

Cross-platform compatibility

Optimized off-line programming to reduce line stoppages and validate programs

Automation

With Silma, programs can be simulated, validated and automated for use without human intervention.

Robotization

Integration into robotized measuring cells for in-line or line-side control.

3. Run and analyze your program

Data processing

Direct machine connection (+120 direct interfaces, including ISO I++ standard)

Customized reporting

Accurate point cloud algorithms; Cutting-edge GDT analysis; Big data management

4. Managing and sharing data

Centralized database

All measurement data can be stored, historized and consulted.

Interoperability

Connection with MES / ERP / PLM systems for complete integration into the production cycle.

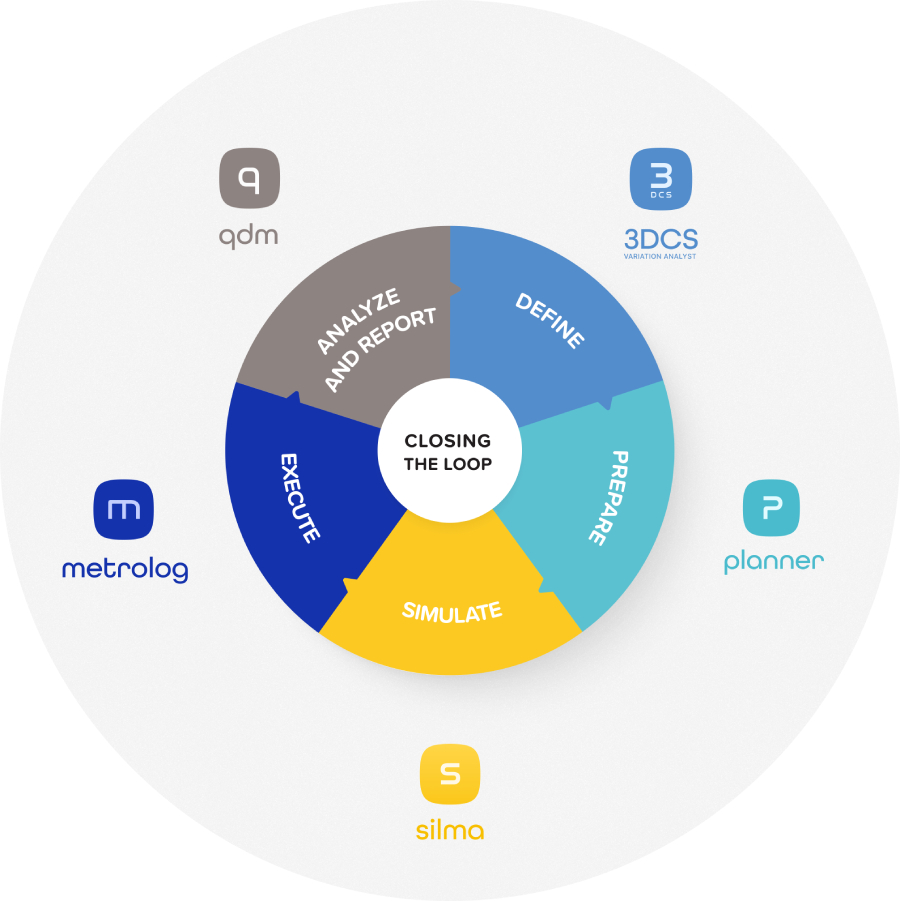

Explaining our process from A to Z

Metrologic DCS offers software and complementary solutions that are fully compatible with each other, allowing you to control all aspects of your measurement processes.

Interested in our comprehensive software offering?
