Boost the performance of your CMMs with 5-axis programming

The advantages of 5-axis programming with Metrolog and Silma

Movement optimization

The Renishaw REVO® system minimizes dynamic effects for fast, accurate measurements.

Fast, precise movement

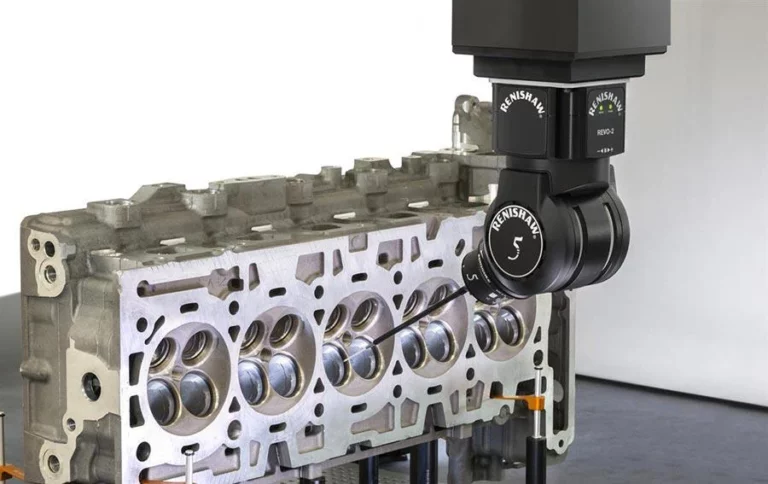

The REVO-2 head performs fast movements while the CMM moves slowly, with a flexible probe for greater precision.

Time-saving and precise

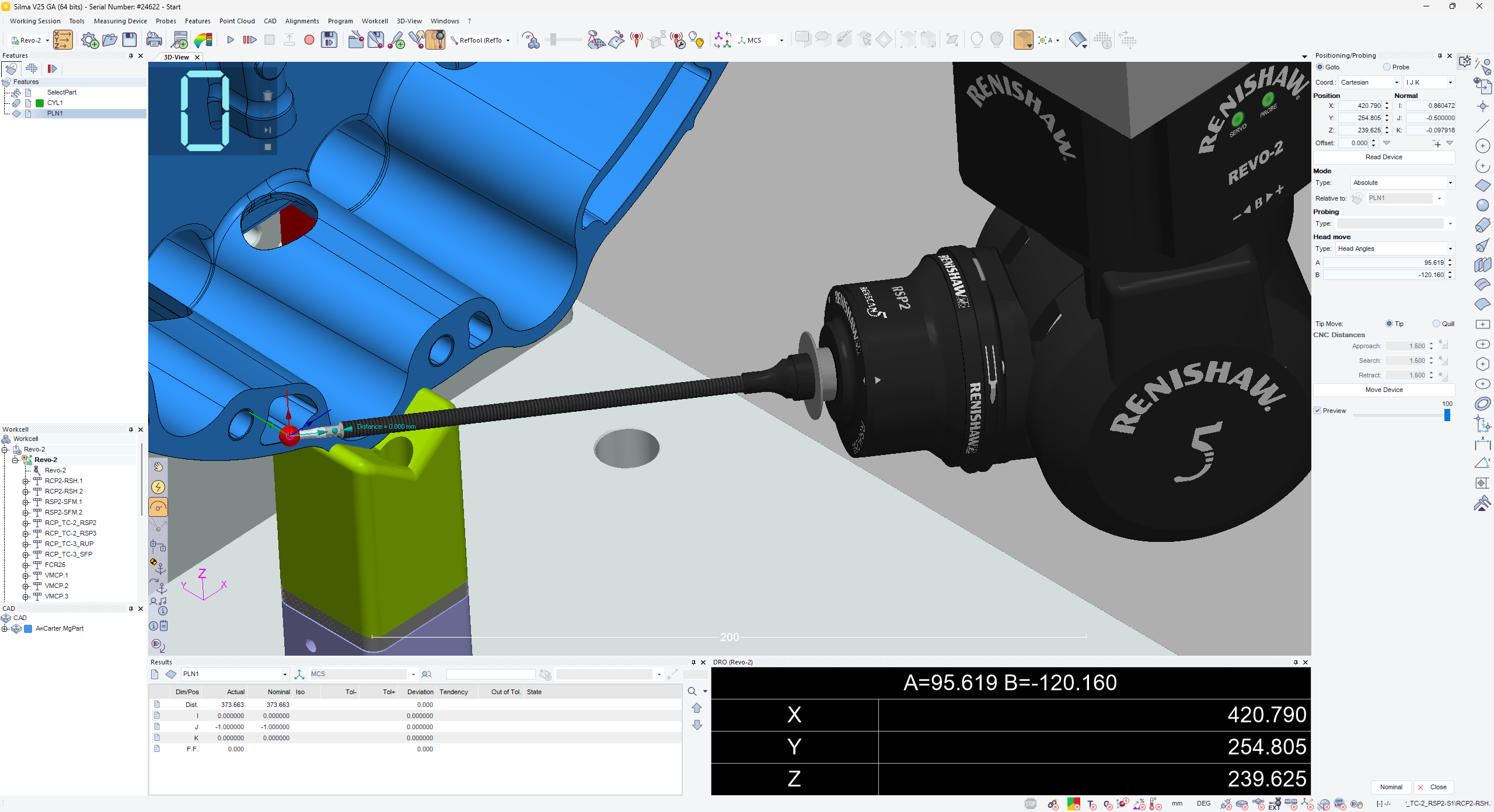

By combining Metrolog and Silma, it saves time while providing details for in-depth dimensional and GD&T analysis.

Infinite positioning

The Renishaw PH20's infinite positioning capability ensures optimum access to features, minimizing stylus changes.

Larger part sizes

Simultaneous 5-axis movement enables larger parts to be measured on the CMM, reducing the space required around the part for head rotation.

Automatic alignment and safety

The PH20 automatically aligns itself with the part's coordinate system, avoiding stylus collisions and the need for precise fixtures.

Time-saving calibration

REVO enables rapid calibration, determining head and probe geometry in a single operation.

Reduced calibration time

Calibration takes 20 minutes with REVO, compared with 30 minutes for 10 orientations with a traditional CMM.

Multi-room efficiency

For 40 orientations, calibration takes 2 hours on a conventional CMM, while REVO remains at 20 minutes.

Would you like to find out more?

Download our presentation brochure or request your free trial

Combined with 5-axis technology, Metrolog and Silma offer ultra-fast, precise and flexible quality control, ideal for Industry 4.0

Would you like to boost the performance of your CMMs with 5-axis programming?
